Operations that support range-partitioning in Modin#
The following operations change their behavior once cfg.RangePartitioning
variable is set to True
.
Go through the list find out when it could be beneficial to engage range-partitioning for a certain method.
GroupBy#
Note
When grouping on multiple columns using range-partitioning implementation, the result
may not be sorted even if groupby(sort=True, ...)
was passed: modin-project/modin#6875.
Range-partitioning groupby implementation is automatically engaged for groupby.apply()
, groupby.transform()
,
groupby.rolling()
. For groupby aggregations from this list, MapReduce implementation is used by default.
MapReduce tends to show better performance for groupby with low-cardinality. If the cardinality of your columns
to group is expected to be high, it’s recommended to engage range-partitioning implementation.
Merge#
Note
Range-partitioning approach is implemented only for “left” and “inner” merge and only when merging on a single column using on argument.
Range-partitioning merge replaces broadcast merge. It is recommended to use range-partitioning implementation if the right dataframe in merge is as big as the left dataframe. In this case, range-partitioning implementation works faster and consumes less RAM.
Under the spoiler you can find performance comparison of range-partitioning and broadcast merge in different scenarios:
Performance measurements for merge
The performance was measured on h2o join queries using Intel(R) Xeon(R) Gold 6238R CPU @ 2.20GHz (56 cores),
with the number of cores allocated for Modin limited by 44 (MODIN_CPUS=44
).
Measurements for small 500mb data:
Measurements for medium 5gb data:
.unique()
and .drop_duplicates()
#
Note
When range-partitioning is enabled, both .unique()
and .drop_duplicates()
will
yield results that are sorted along rows. If range-partitioning is disabled,
the original order will be maintained.
Range-partitioning implementation of .unique()
/ .drop_duplicates()
works best when the input data size is big (more than
5_000_000 rows) and when the output size is also expected to be big (no more than 80% values are duplicates).
Under the spoiler you can find performance comparisons in different scenarios:
Performance measurements for ``.unique()``
The performance was measured on randomly generated data using Intel(R) Xeon(R) Gold 6238R CPU @ 2.20GHz (56 cores). The duplicate rate shows the procentage of duplicated rows in the dataset. You can learn more about this micro-benchmark by reading its source code:
Micro-benchmark's source code
import modin.pandas as pd
import numpy as np
import modin.config as cfg
from modin.utils import execute
from timeit import default_timer as timer
import pandas
cfg.CpuCount.put(16)
def get_data(nrows, dtype):
if dtype == int:
return np.arange(nrows)
elif dtype == float:
return np.arange(nrows).astype(float)
elif dtype == str:
return np.array([f"value{i}" for i in range(nrows)])
else:
raise NotImplementedError(dtype)
pd.DataFrame(np.arange(cfg.NPartitions.get() * cfg.MinPartitionSize.get())).to_numpy()
nrows = [1_000_000, 5_000_000, 10_000_000, 25_000_000, 50_000_000, 100_000_000]
duplicate_rate = [0, 0.1, 0.5, 0.95]
dtypes = [int, str]
use_range_part = [True, False]
columns = pandas.MultiIndex.from_product([dtypes, duplicate_rate, use_range_part], names=["dtype", "duplicate rate", "use range-part"])
result = pandas.DataFrame(index=nrows, columns=columns)
i = 0
total_its = len(nrows) * len(duplicate_rate) * len(dtypes) * len(use_range_part)
for dt in dtypes:
for nrow in nrows:
data = get_data(nrow, dt)
np.random.shuffle(data)
for dpr in duplicate_rate:
data_c = data.copy()
dupl_val = data_c[0]
num_duplicates = int(dpr * nrow)
dupl_indices = np.random.choice(np.arange(nrow), num_duplicates, replace=False)
data_c[dupl_indices] = dupl_val
for impl in use_range_part:
print(f"{round((i / total_its) * 100, 2)}%")
i += 1
cfg.RangePartitioning.put(impl)
sr = pd.Series(data_c)
execute(sr)
t1 = timer()
# returns a list, so no need for materialization
sr.unique()
tm = timer() - t1
print(nrow, dpr, dt, impl, tm)
result.loc[nrow, (dt, dpr, impl)] = tm
result.to_excel("unique.xlsx")
Measurements with 16 cores being allocated for Modin (MODIN_CPUS=16
):

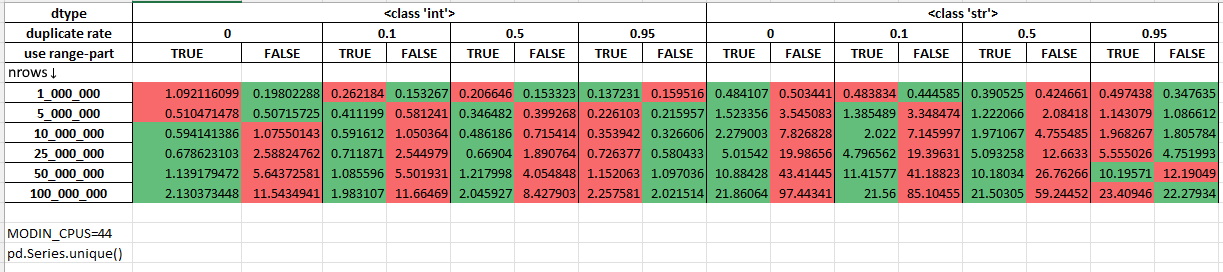

Measurements with 44 cores being allocated for Modin (MODIN_CPUS=44
):
Performance measurements for ``.drop_duplicates()``
The performance was measured on randomly generated data using Intel(R) Xeon(R) Gold 6238R CPU @ 2.20GHz (56 cores).
The duplicate rate shows the procentage of duplicated rows in the dataset. The subset size shows the number of
columns being specified as a subset
parameter for df.drop_duplicates()
. You can learn more about this
micro-benchmark by reading its source code:
Micro-benchmark's source code
import modin.pandas as pd
import numpy as np
import modin.config as cfg
from modin.utils import execute
from timeit import default_timer as timer
import pandas
cfg.CpuCount.put(16)
pd.DataFrame(np.arange(cfg.NPartitions.get() * cfg.MinPartitionSize.get())).to_numpy()
nrows = [1_000_000, 5_000_000, 10_000_000, 25_000_000]
duplicate_rate = [0, 0.1, 0.5, 0.95]
subset = [["col0"], ["col1", "col2", "col3", "col4"], None]
ncols = 15
use_range_part = [True, False]
columns = pandas.MultiIndex.from_product(
[
[len(sbs) if sbs is not None else ncols for sbs in subset],
duplicate_rate,
use_range_part
],
names=["subset size", "duplicate rate", "use range-part"]
)
result = pandas.DataFrame(index=nrows, columns=columns)
i = 0
total_its = len(nrows) * len(duplicate_rate) * len(subset) * len(use_range_part)
for sbs in subset:
for nrow in nrows:
data = {f"col{i}": np.arange(nrow) for i in range(ncols)}
pandas_df = pandas.DataFrame(data)
for dpr in duplicate_rate:
pandas_df_c = pandas_df.copy()
dupl_val = pandas_df_c.iloc[0]
num_duplicates = int(dpr * nrow)
dupl_indices = np.random.choice(np.arange(nrow), num_duplicates, replace=False)
pandas_df_c.iloc[dupl_indices] = dupl_val
for impl in use_range_part:
print(f"{round((i / total_its) * 100, 2)}%")
i += 1
cfg.RangePartitioning.put(impl)
md_df = pd.DataFrame(pandas_df_c)
execute(md_df)
t1 = timer()
res = md_df.drop_duplicates(subset=sbs)
execute(res)
tm = timer() - t1
sbs_s = len(sbs) if sbs is not None else ncols
print("len()", res.shape, nrow, dpr, sbs_s, impl, tm)
result.loc[nrow, (sbs_s, dpr, impl)] = tm
result.to_excel("drop_dupl.xlsx")

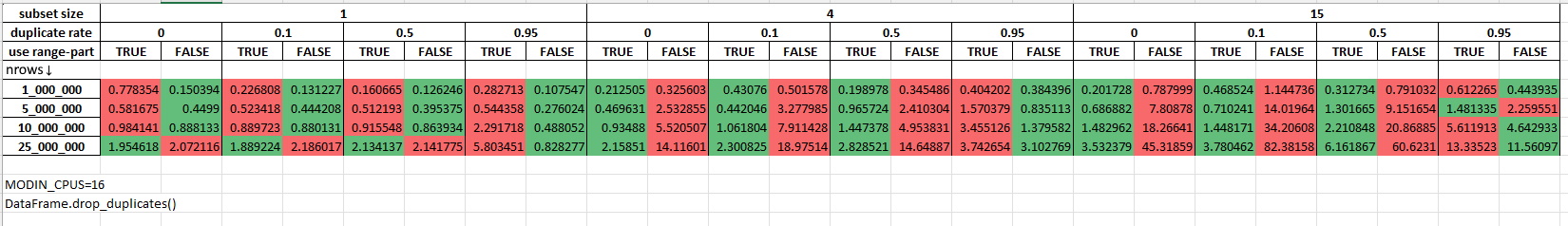

Measurements with 16 cores being allocated for Modin (MODIN_CPUS=16
):
Measurements with 44 cores being allocated for Modin (MODIN_CPUS=44
):
‘.nunique()’#
Note
Range-partitioning approach is implemented only for pd.Series.nunique()
and 1-column dataframes.
For multi-column dataframes .nunique()
can only use full-axis reduce implementation.
Range-partitioning implementation of ‘.nunique()’’ works best when the input data size is big (more than 5_000_000 rows) and when the output size is also expected to be big (no more than 80% values are duplicates).
Under the spoiler you can find performance comparisons in different scenarios:
Performance measurements for ``.nunique()``
The performance was measured on randomly generated data using Intel(R) Xeon(R) Gold 6238R CPU @ 2.20GHz (56 cores). The duplicate rate shows the procentage of duplicated rows in the dataset. You can learn more about this micro-benchmark by reading its source code:
Micro-benchmark's source code
import modin.pandas as pd
import numpy as np
import modin.config as cfg
from modin.utils import execute
from timeit import default_timer as timer
import pandas
cfg.CpuCount.put(16)
def get_data(nrows, dtype):
if dtype == int:
return np.arange(nrows)
elif dtype == float:
return np.arange(nrows).astype(float)
elif dtype == str:
return np.array([f"value{i}" for i in range(nrows)])
else:
raise NotImplementedError(dtype)
pd.DataFrame(np.arange(cfg.NPartitions.get() * cfg.MinPartitionSize.get())).to_numpy()
nrows = [1_000_000, 5_000_000, 10_000_000, 25_000_000, 50_000_000, 100_000_000]
duplicate_rate = [0, 0.1, 0.5, 0.95]
dtypes = [int, str]
use_range_part = [True, False]
columns = pandas.MultiIndex.from_product([dtypes, duplicate_rate, use_range_part], names=["dtype", "duplicate rate", "use range-part"])
result = pandas.DataFrame(index=nrows, columns=columns)
i = 0
total_its = len(nrows) * len(duplicate_rate) * len(dtypes) * len(use_range_part)
for dt in dtypes:
for nrow in nrows:
data = get_data(nrow, dt)
np.random.shuffle(data)
for dpr in duplicate_rate:
data_c = data.copy()
dupl_val = data_c[0]
num_duplicates = int(dpr * nrow)
dupl_indices = np.random.choice(np.arange(nrow), num_duplicates, replace=False)
data_c[dupl_indices] = dupl_val
for impl in use_range_part:
print(f"{round((i / total_its) * 100, 2)}%")
i += 1
cfg.RangePartitioning.put(impl)
sr = pd.Series(data_c)
execute(sr)
t1 = timer()
# returns a scalar, so no need for materialization
res = sr.nunique()
tm = timer() - t1
print(nrow, dpr, dt, impl, tm)
result.loc[nrow, (dt, dpr, impl)] = tm
result.to_excel("nunique.xlsx")
Measurements with 16 cores being allocated for Modin (MODIN_CPUS=16
):
Resample#
Note
Range-partitioning approach doesn’t support transform-like functions (like .interpolate(), .ffill(), .bfill(), …)
It is recommended to use range-partitioning for resampling if you’re dealing with a dataframe that has more than 5_000_000 rows and the expected output is also expected to be big (more than 500_000 rows).
Under the spoiler you can find performance comparisons in different scenarios:
Performance measurements for ``.resample()``
The script below measures performance of df.resample(rule).sum()
using Intel(R) Xeon(R) Gold 6238R CPU @ 2.20GHz (56 cores).
You can learn more about this micro-benchmark by reading its source code:
Micro-benchmark's source code
import pandas
import numpy as np
import modin.pandas as pd
import modin.config as cfg
from timeit import default_timer as timer
from modin.utils import execute
cfg.CpuCount.put(16)
nrows = [1_000_000, 5_000_000, 10_000_000]
ncols = [5, 33]
rules = [
"500ms", # doubles nrows
"30s", # decreases nrows in 30 times
"5min", # decreases nrows in 300
]
use_rparts = [True, False]
cols = pandas.MultiIndex.from_product([rules, ncols, use_rparts], names=["rule", "ncols", "USE RANGE PART"])
rres = pandas.DataFrame(index=nrows, columns=cols)
total_nits = len(nrows) * len(ncols) * len(rules) * len(use_rparts)
i = 0
for nrow in nrows:
for ncol in ncols:
index = pandas.date_range("31/12/2000", periods=nrow, freq="s")
data = {f"col{i}": np.arange(nrow) for i in range(ncol)}
pd_df = pandas.DataFrame(data, index=index)
for rule in rules:
for rparts in use_rparts:
print(f"{round((i / total_nits) * 100, 2)}%")
i += 1
cfg.RangePartitioning.put(rparts)
df = pd.DataFrame(data, index=index)
execute(df)
t1 = timer()
res = df.resample(rule).sum()
execute(res)
ts = timer() - t1
print(nrow, ncol, rule, rparts, ts)
rres.loc[nrow, (rule, ncol, rparts)] = ts
rres.to_excel("resample.xlsx")

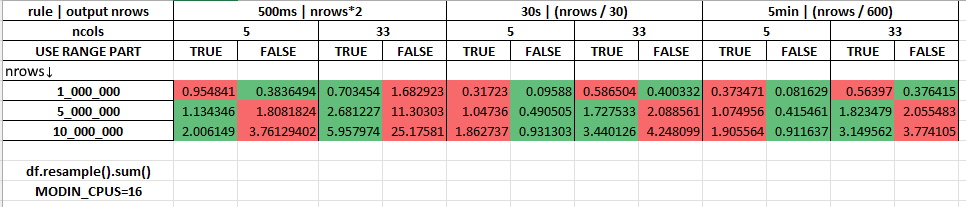

Measurements with 16 cores being allocated for Modin (MODIN_CPUS=16
):
pivot_table#
Range-partitioning implementation is automatically applied for df.pivot_table
whenever possible, users can’t control this.
sort_values#
Range-partitioning implementation is automatically applied for df.sort_values
whenever possible, users can’t control this.
